PINNACLE LIFTS 7500: Vertical

Full Featured Lift for Boats up to 7,500 lbs.

go  extreme if you dare

Go fast, play hard.

The 7500 lb. capacity Pinnacle Series Vertical Lifts are perfect for extreme water sports enthusiasts with the biggest, fastest boats!

Built for dependability & value.

Designed to be easy to assemble, use, and service.

LSV75120C (model shown)

also available: LSV75120CP and LSV75120CP-U

 See below for complete list of model with specifications & accessories



1

Heavy Duty Vinyl Wrapped Bunks

Extra heavy aluminum bunks to cradle your boat. Comes standard with 18" down legs.

2

3/8" Stainless Steel Cable

Resist rust and corrosion better than galvanized.

3

24V DC Power System

Detachable pendant makes using your boat secure and hassle free. Comes standard with solar panel and battery tray.
(batteries and battery boxes not included)

4

6" Solid Brass Pulleys

Solid brass is expensive and worth it. Brass is the best combination of high strength and low cable abrasion. It will not corrode even in the most challenging water and lasts a lifetime. Large diameter is easier on cable.

5

5000 lb Lifting Cradle

Rear lifting cradle designed to dead lift 5,000 lbs so V-drive tower boats are easier to place on lift.

6

36" Adjustable Legs with Pivoting Pads

Because lake bottoms are almost never perfectly flat. Legs may be removed for shallow water applications. Extension legs are available for deep water.

7

Reinforced Corner Posts

Engineered 4" square extrusion designed to still accept standard legs. Extension legs available.

SPECIFICATIONS

All models include a 24 volt dc winch, solar panel, battery tray, 3' legs, and 1 set of vinyl wrapped bunks.

model
load capacity
beam width
outside width
lift height
weight
owner's manual
parts list
LSV75120C
7500 lbs
120"
128.75"
50"
642 lbs
LSV75120CP
7500 lbs
120"
128.75"
50"
720 lbs
LSV75120CP-U
7500 lbs
120"
128.75"
50"
720 lbs

For boats under 5000 lbs please see our Boat Lifts or Pontoon Lifts.

ACCESSORIES

model
leg extensions
walk on guide on
pontoon bunk set
under deck bunk bdl
under deck poly rail kit
direct drive motor kit
wheel assist motor kit
LSV75120C
LS510(4B/5B/6B)
WOGOV50B
VPRB-(50/HD)
LS5004BU
LS5013BU
included
N/A
LSV75120CP
LS510(4B/5B/6B)
WOGOV50B
VPRB-(50/HD)
LS5004BU
LS5013BU
included
N/A
LSV75120CP-U
LS510(4B/5B/6B)
WOGOV50B
VPRB-(50/HD)
LS5004BU
LS5013BU
included
N/A
Leg Extensions Leg Extensions
Walk On Guide On Walk On Guide On
Pontoon Bunk Set Pontoon Bunk Set
Under Deck Bunk Bundle Under Deck Bunk Bundle
Under Deck Poly Rail Kit Under Deck Poly Rail Kit
Direct Drive Motor Kit Direct Drive Motor Kit
Wheel Assist Motor Kit Wheel Assist Motor Kit

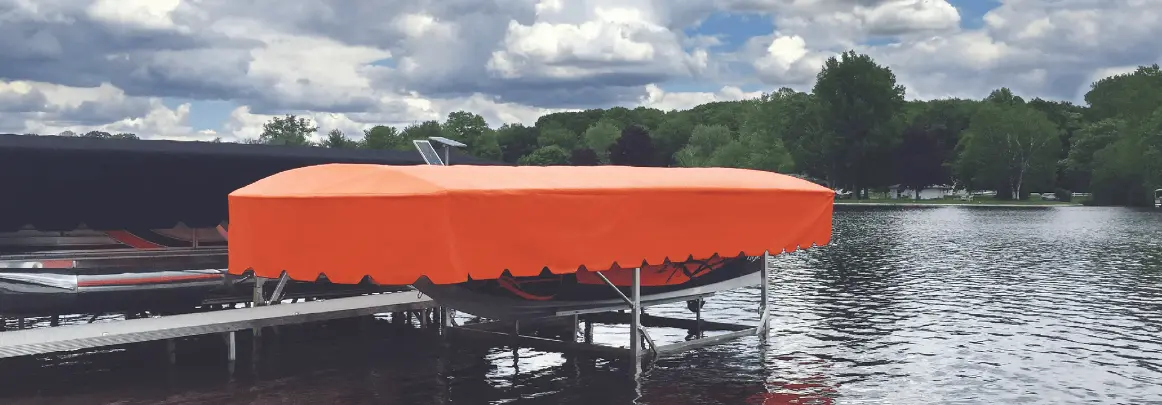

CANOPIES

model
canopy frame + 5' legs
canopy leg extensions
canopy brace kit
canvas
LSV75120C
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV75120CP
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV75120CP-U
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
