pwc lifts aren't just for pwc's anymore

With three models to choose from, LSP has a PWC Lift for a full range of small boats as well as all sizes of PWC’s.

BOAT LIFTS : Cantilever

Models to fit any PWC - from a small stand-up to the 3 person, 4 cycle units.

increase your  flexibility


Work days are made up of schedules and deadlines. Summer days should be more flexible.

Our PWC Lifts are not only for Personal Watercraft, but they also have the flexibility to be used with small fishing boats, sailboats, paddle boats, canoes and kayaks.

We set the standard. Our lifts feature a distinctive design that is engineered for strength and dependability.

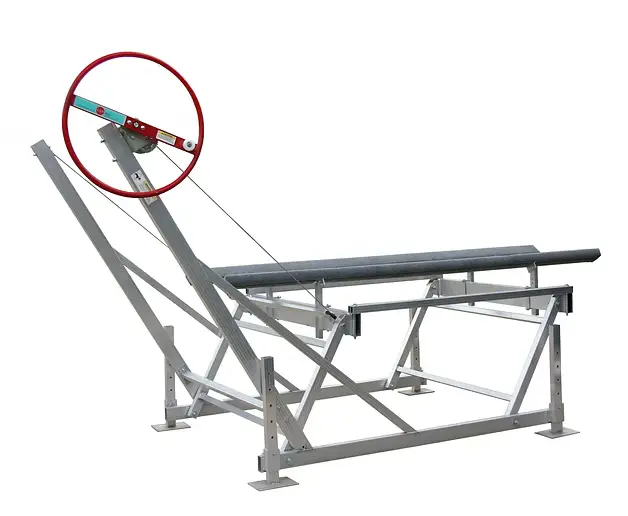

LSV40120C (model shown)

See below for complete list of models

with specifications & accessories

LSC850

For 2 cycle & 4 cycle 2 passenger

Personal Watercraft.

Also great for paddle boats and

small sailboats.


LSC850D

Double lift saves valuable

dock space.

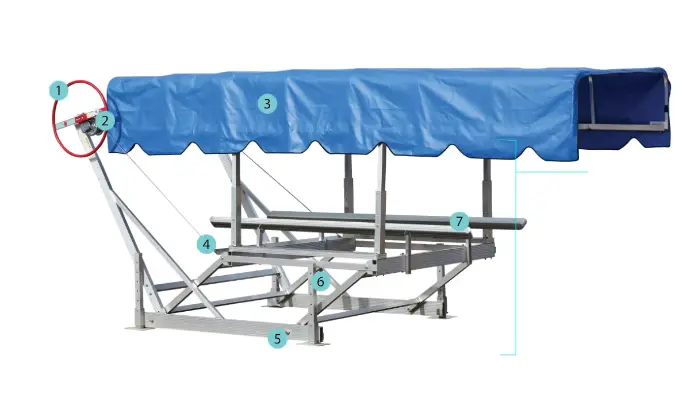

1

25" Aluminum Wheel

Easy to use, powder coated in our signature red for a durable long lasting finish.

2

Heavy Duty Winch

We oversize all of our winches for extra safety and easy cranking. Durable zinc plating resists rust better than a painted winch.

3

Canopy

To cover and protect your PWC.

4

Exclusive Pulley Bar Design

One piece design works better than independent pulleys, results in longer cable life, and shields your boat from any contact with the cable.

5

Welded Bushings

Provide extra reinforcement at pivot points, unlike drilled holes that can wear out.

6

Fully Adjustable Legs

Come standard on all of our Personal Watercraft Lifts. Longer length legs are available for deep water. Legs can be removed for shallow water.

7

Vinyl Wrapped Aluminum Bunks

Gently support your boat without damaging the surface. Fully adjustable to fit your boat. Lighter than wood and will not rot or warp.

SPECIFICATIONS

All models include a manual winch, wheel, 3' legs, and 1 set of vinyl wrapped bunks.

model
load capacity
beam width
outside width
lift height
weight
owner's manual
parts list
LSV20100C
2000 lbs
100"
107.75"
54"
345 lbs
LSV30108C
3000 lbs
108"
115.75"
54"
395 lbs
LSV40108C
4000 lbs
108"
115.75"
54"
420 lbs
LSV30120C1
3000 lbs
120"
127.75"
54"
405 lbs
LSV40120C1
4000 lbs
120"
127.75"
54"
430 lbs
LSV50120C
5000 lbs
120"
127.75"
52"
470 lbs

For boats over 5000 lbs please see our 7500 lb Pinnacle Lift.

ACCESSORIES

model
leg extensions
walk on guide on
pontoon bunk set
under deck bunk bdl
under deck poly rail kit
direct drive motor kit
wheel assist motor kit
LSV20100C
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV30108C
LS510(4B/5B/6B)
WOGOV30B
VPRB
N/A
N/A
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV40108C
LS510(4B/5B/6B)
WOGOV30B
VPRB
N/A
N/A
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV30120C1
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV40120C1
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV50120C
LS510(4B/5B/6B)
WOGOV30B
VPRB-(50/HD)
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
Leg Extensions Leg Extensions
Walk On Guide On Walk On Guide On
Pontoon Bunk Set Pontoon Bunk Set
Under Deck Bunk Bundle Under Deck Bunk Bundle
Under Deck Poly Rail Kit Under Deck Poly Rail Kit
Direct Drive Motor Kit Direct Drive Motor Kit
Wheel Assist Motor Kit Wheel Assist Motor Kit

CANOPIES

model
canopy frame + 5' legs
canopy leg extensions
canopy brace kit
canvas
LSV20100C
(18/20)AF100B
LS500(8B/9B)
LS6001
CAN(18/20)100
LSV30108C
(22/24/26)AF108B
LS500(8B/9B)
LS6001
CAN(22/24/26)108
LSV30120C1
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV40108C
(22/24/26)AF108B
LS500(8B/9B)
LS6001
CAN(22/24/26)108
LSV40120C1
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV50120C
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
