PONTOON LIFTS : Vertical

Full Featured Lift for Pontoon Boats up to 5,000 lbs.


summertime... and the living is  easy

Summer at the lake. Time to relax and take it easy.

Our trailer type bunks make it easy to dock your boat perfectly every time.

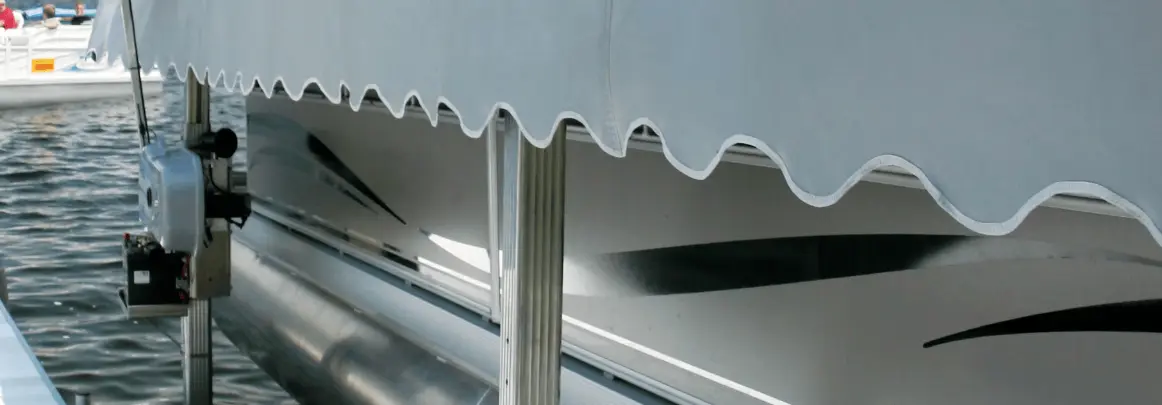

By adding a canopy, you can eliminate the inconvenience of having to stop the morning cover on.

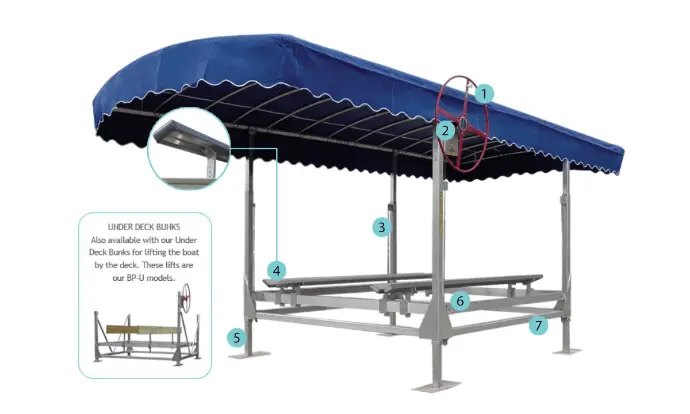

LSV30120CP (model shown)

See below for complete list of models

with specifications & accessories

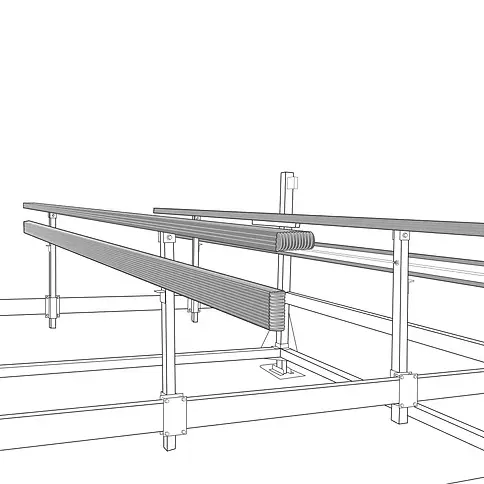

Under Deck PolyRail Kit This is an upgrade over using wood for your Under Deck Bunks. Can be shipped via UPS.



1

Improved Wheel Design

41" diameter wheel extends further out over the dock, making it easier to operate and reducing interference with the canopy.

2

Improved Winch Design

A larger drum makes the cable last longer.

3

Stainless Steel Cables

Resist rust and corrosion better than galvanized steel.

4

Reinforced Vinyl Wrapped Aluminum Long V Bunks

Help guide your boat onto the lift and gently support it without damaging the surface. Fully adjustable to fit your pontoons. Will not rot or warp and lighter than wood.

5

36" Adjustable Legs with Pivoting Pads

Because lake bottoms are almost never perfectly flat. The legs may be removed for shallow water applications.

6

Solid Brass Pulleys

Solid brass is expensive and worth it. Brass is the best combination of high strength and low cable abrasion. It will not corrode and lasts a lifetime.

7

Reinforced Mainframe Spreaders

Resists the damage caused by yearly installation and removal, and strong enough to sit directly on the bottom in shallow water.

SPECIFICATIONS

model
load capacity
beam width
outside width
lift height
weight
owner's manual
parts list
LSV50120CP
5000 lbs
120"
127.75"
52"
490 lbs
LSV30120CP
3000 lbs
108"
115.75"
54"
395 lbs
LSV40120CP
4000 lbs
120"
127.75"
54"
450 lbs
LSV30120CP-U
3000 lbs
120"
127.75"
54"
425 lbs
LSV40120CP-U
4000 lbs
120"
127.75"
54"
450 lbs
LSV50120CP-U
5000 lbs
120"
127.75"
52"
490 lbs

ACCESSORIES

model
leg extensions
walk on guide on
pontoon bunk set
under deck bunk bdl
under deck poly rail kit
direct drive motor kit
wheel assist motor kit
LSV30120CP
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV30120CP-U
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV40120CP
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV40120CP-U
LS510(4B/5B/6B)
WOGOV30B
VPRB
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV50120CP
LS510(4B/5B/6B)
WOGOV50B
VPRB-(50/HD)
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
LSV50120CP-U
LS510(4B/5B/6B)
WOGOV50B
VPRB-(50/HD)
LS5004BU
LS5013BU
MKLT(A/AR/D/DR)
BL(12VM/110VM)
Leg Extensions Leg Extensions
Walk On Guide On Walk On Guide On
Pontoon Bunk Set Pontoon Bunk Set
Under Deck Bunk Bundle Under Deck Bunk Bundle
Under Deck Poly Rail Kit Under Deck Poly Rail Kit
Direct Drive Motor Kit Direct Drive Motor Kit
Wheel Assist Motor Kit Wheel Assist Motor Kit

CANOPIES

model
canopy frame + 5' legs
canopy leg extensions
canopy brace kit
canvas
LSV30120CP
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV30120CP-U
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV40120CP
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV40120CP-U
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV50120CP
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
LSV50120CP-U
(22/24/26/28/30)AF120B
LS500(8B/9B)
LS6001
CAN(22/24/26/28/30)120
